EAGLE RESCUE
VACCUUM/PRESSURE SYSTEM
- 460 CFM Efficient Continuous Duty Pump
- 8 Vanes
- Tamper Proof Oiler
- 5 Year Warranty
- Oil Catch Muffler
- Flush Valve
- Fan Cooled & Shrouded
- Positive Primary and Secondary Shutoff
- Clutch Shift PTO
- Belt Driven from PTO
- Electric Actuated
- Over Speed Protection
WATER TANK
- Polished aluminum with ½” bottom and 5/16” heads. (Steel if requested)
- Proprietary interior Firokote coating with two 9# anode bars
- 15 year non pro-rated corrosion (rust) perforation warranty, lifetime leak
- Size ranging from 1500-3500+
- Patent designed internal vent system specific for fire service
- Patent designed baffles with no flat surfaces to control inertial forces
- Two full length 7” wide skids (one each side)
- Interior reinforcing rings
WATER VALVES
- Each side and rear air operated butterfly with positive closure and indicators.
- Control switches in the cab and at the valves.
- Quick couple fittings.
COMPARTMENTS

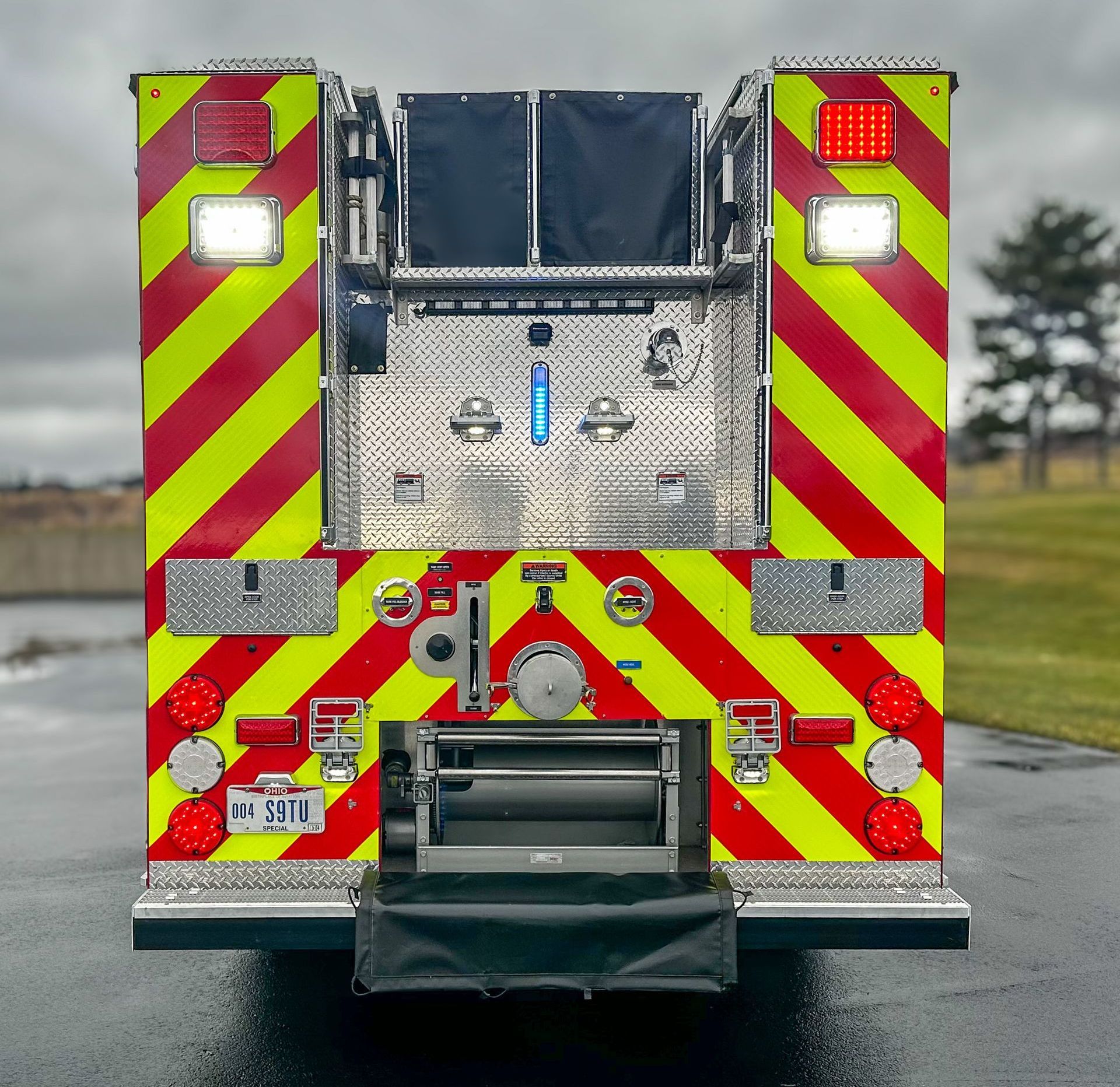

- Transverse rear compartment.
- Closed hose compartment the length of the unit on each side.
- Full high side compartments both sides.
- Hose bed on top.
OTHER FEATURES
- PTO driven fire pump of desired size with pump and roll capabilities
- Cross lays
- Lettering, striping

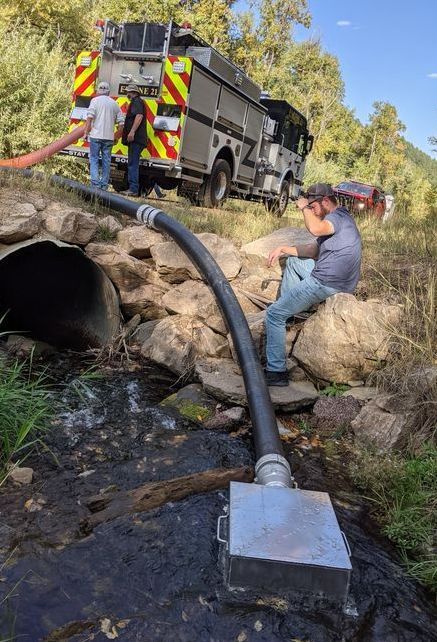

- Loose goods, hoses, patented floating low flow strainer with detachable pan.
- The only performance guarantee on the market today.
- NFPA compliant
- Many options available!
